£9,173.85 – £10,010.70 exc. VAT

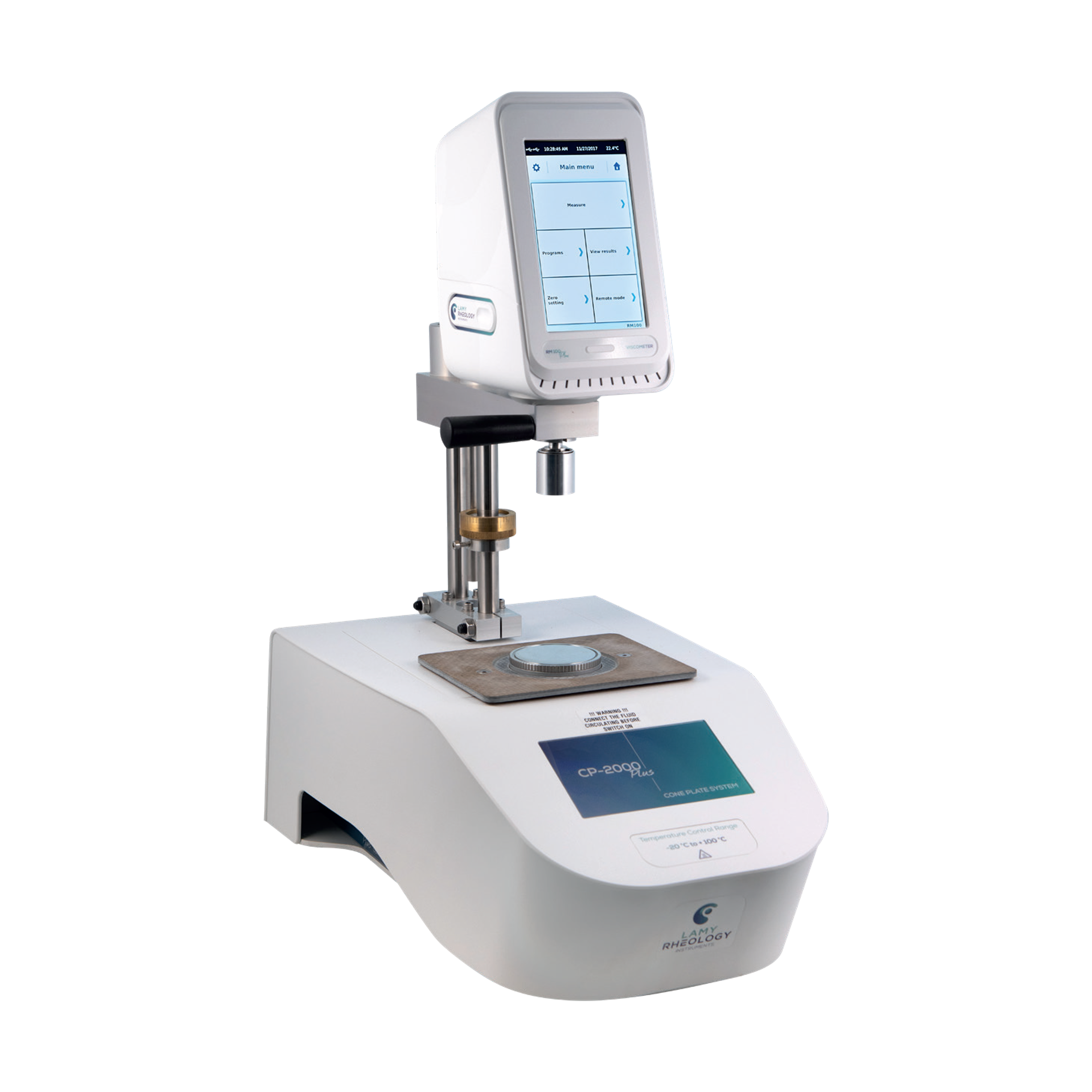

Cone and plate measuring systems are adapted for samples in limited quantities and difficult to clean. With maximum shear rate up to 20,000 s-1, the RM 100 CP-2000 PLUS viscometer will fit all your applications.

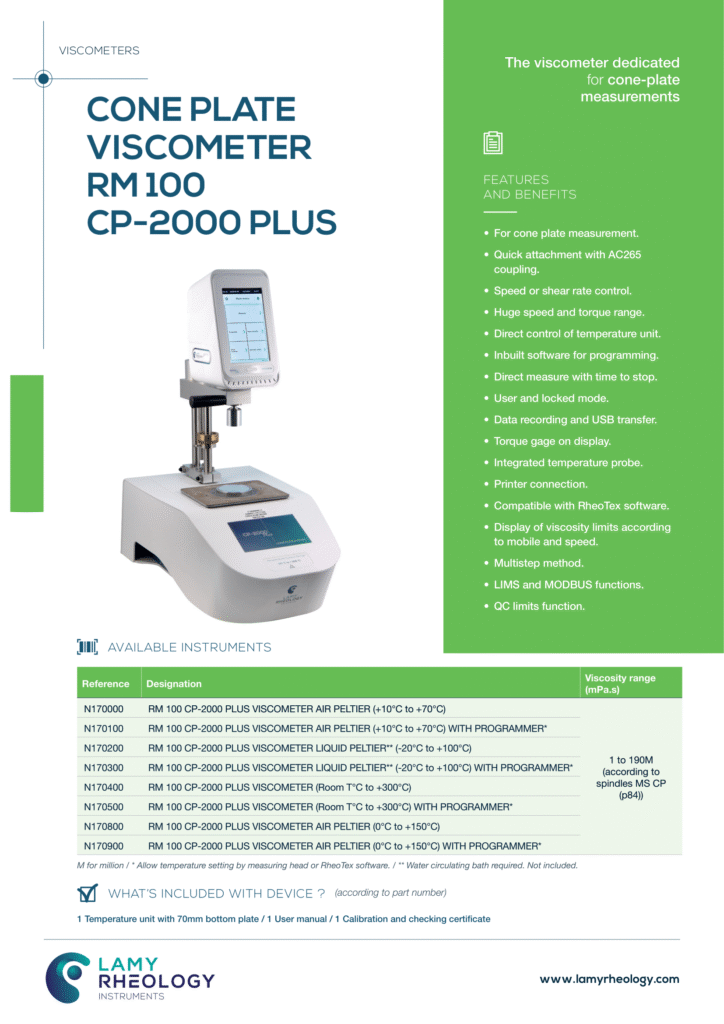

Designation | Viscosity range (mPa.s) | RM 100 CP-1000 CONE PLATE VISCOMETER (+5°C to +65°C)* | 1 to 190M **
|
|---|
Our Team will go through your specific requirements and offer the best solution possible.
The standard stand allows you to install your viscometer or rheometer on table.
Thanks to its stop ring, it is recommended when the height of the measurement position is constant. Included according to instrument model, it includes a rod, a stop ring, a safety sleeve, a arm and a base
The rack stand allows you to install your viscometer or rheometer on table.
Thanks to its notched rod system, it allows easy vertical movement of measuring head and is recommended when height of measuring position varies according to container or measuring spindle used. Included according to
instrument models, it includes a notched shank, arm and base.
Type of instrument
Cone-plate rotating springless viscometer with 7’’ Touch screen
Rotation speeds
Unlimited number of speeds between 0.3 and
1500 rpm
Torque range
From 0.05 to 30 mNm
Temperature :
Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C
Accuracy
+/- 1 % of the full scale
Repeatability
+/- 0,2 %
Norms
ASTM : D4287 ; BS 3900 ; DIN 3219 ;
52007-1 ; 53019-1 ; 54453 ; ISO 2884; 3219
; 10364-12
Display
Viscosity (cP / Poises or mPa.s / Pa.s)
Speed – Shear rate – Torque (% – mNm) –
Shear stress – Time – Temperature
Languages
French/English/Russian/Spanish/Turkish/German/Italian/Korean/Portuguese
Supply voltage
90-240 VAC 50/60 Hz
Connection
RS232, USB and
Ethernet
Printer connection :
USB Host Port – Compatible PCL/5
Dimensions and weight
D610 x H700 x W340 mm
Weight: 22 kg
Compatible measuring systems :
MS CP, MS RV/LV , MS VANES, MS KREBS.
Fill in the form and our team of experts will recommend the best viscometer and setup based on your requirements.
| Viscometer Functions | 7’’ Touch Screen, Data Memorisation, Data Transfer, Data/User Security, Inbuilt Software For Programming, LIMS, Manage Temperature Unit, Multi Interval Method, Multi Languages, Printer Connection, QC Limits, Rheotex Compatibility, Temperature Probe, Time To Stop Method, USB Flash Drive Port, USB/RS232 Connection, Viscosity Limits |
|---|
